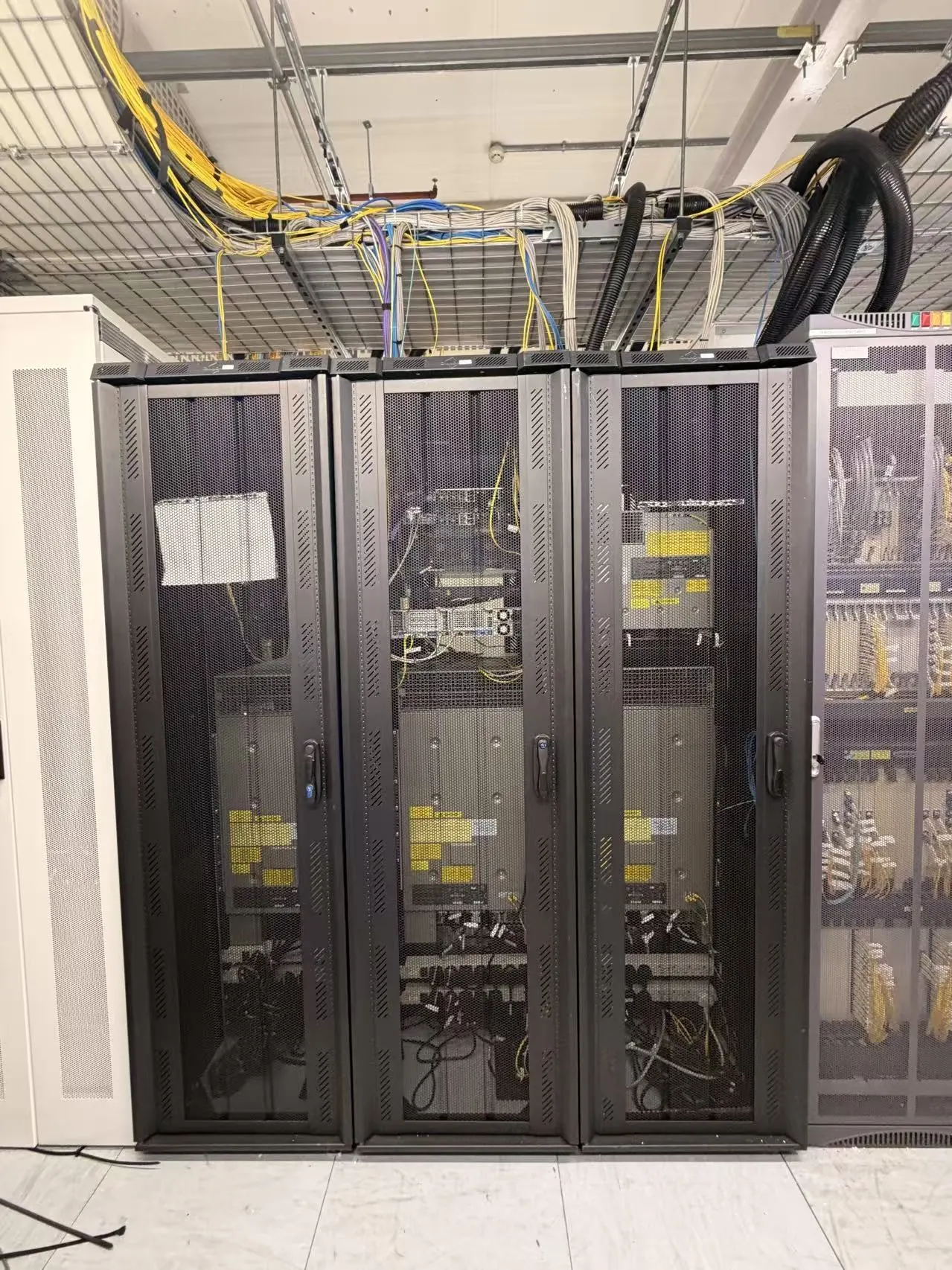

Plan the interconnection environment
Rack use, optical distribution, active equipment positions and fibre pathways were coordinated around access, separation, bend-radius and future cross-connect requirements.
Data Centre · Confidential
Data Centre MMR & Optical Interconnection Build
A meet-me-room build integrating high-density single-mode fibre, ODF-level cross-connects and carrier-grade optical transport equipment.
The Challenge
The new MMR needed to bring fibre pathways, termination, cross-connects and active optical transport equipment into one controlled interconnection environment. With many transmit and receive paths concentrated in a small footprint, physical routing and port-level traceability were as important as bringing the equipment online.
How We Delivered
Integrate the optical transport platform

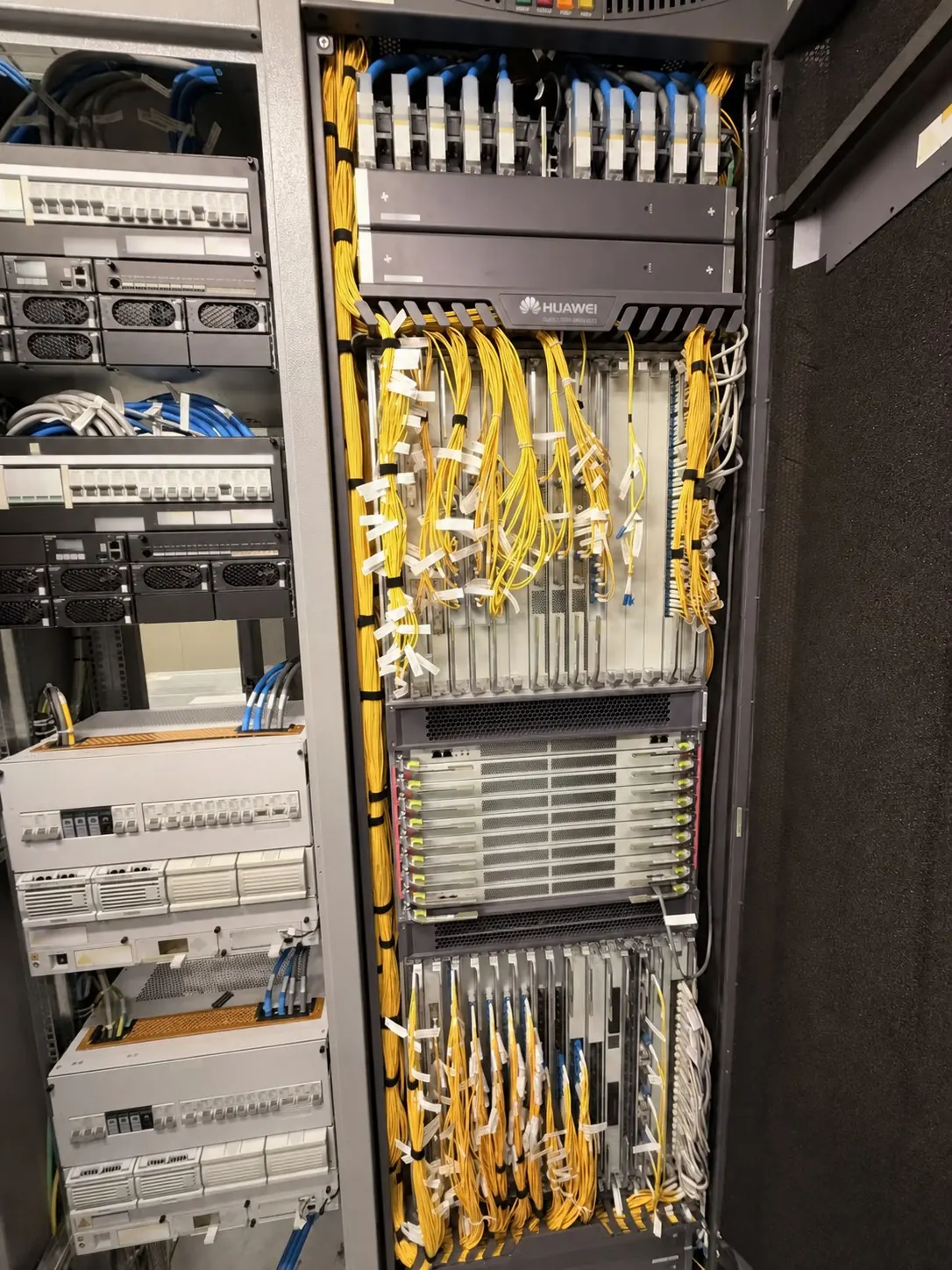

Huawei optical transport shelves and associated interfaces were installed and connected as part of the MMR node, aligning active equipment with the agreed ODF and remote-rack design.
Control high-density fibre patching

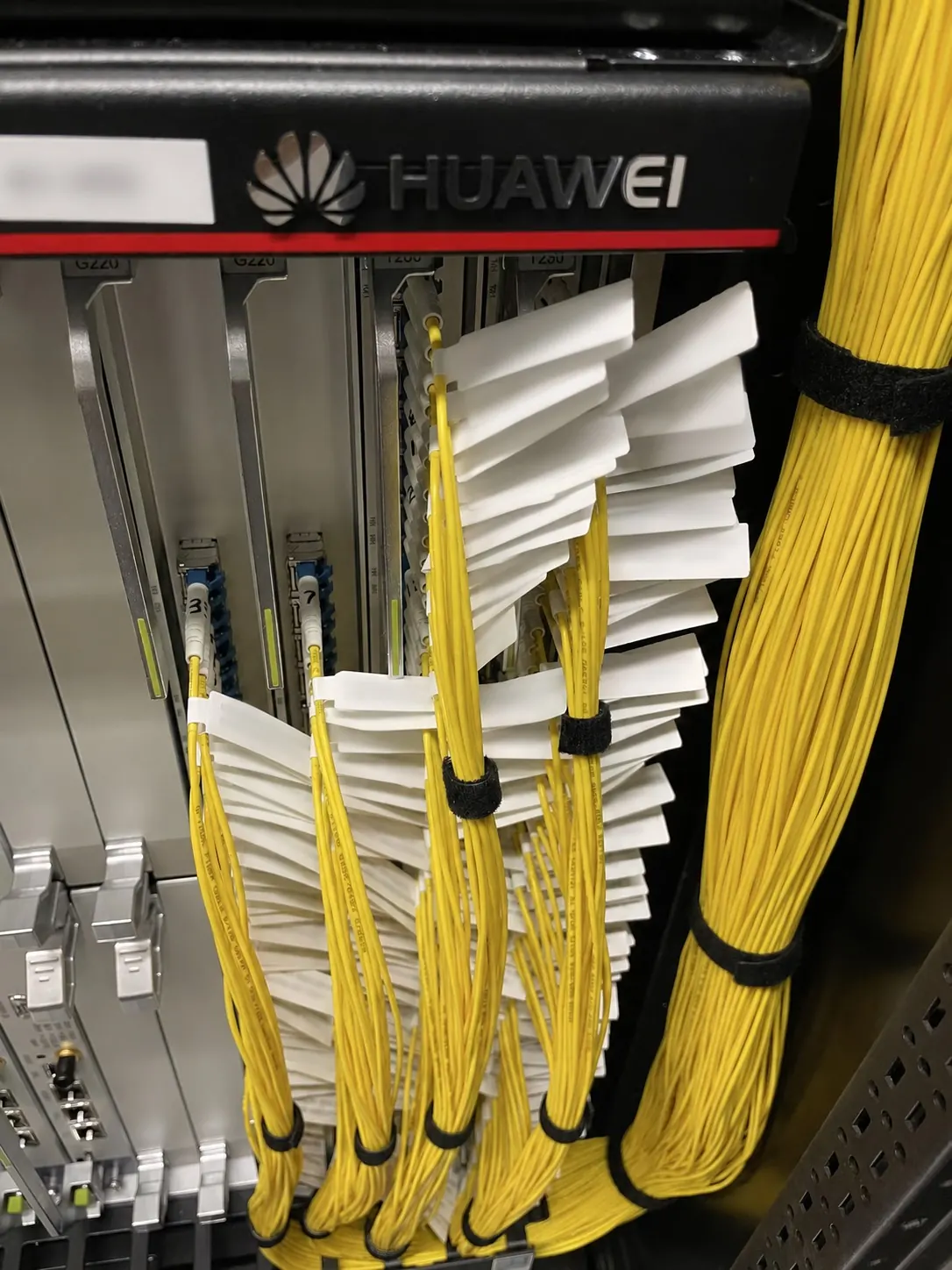

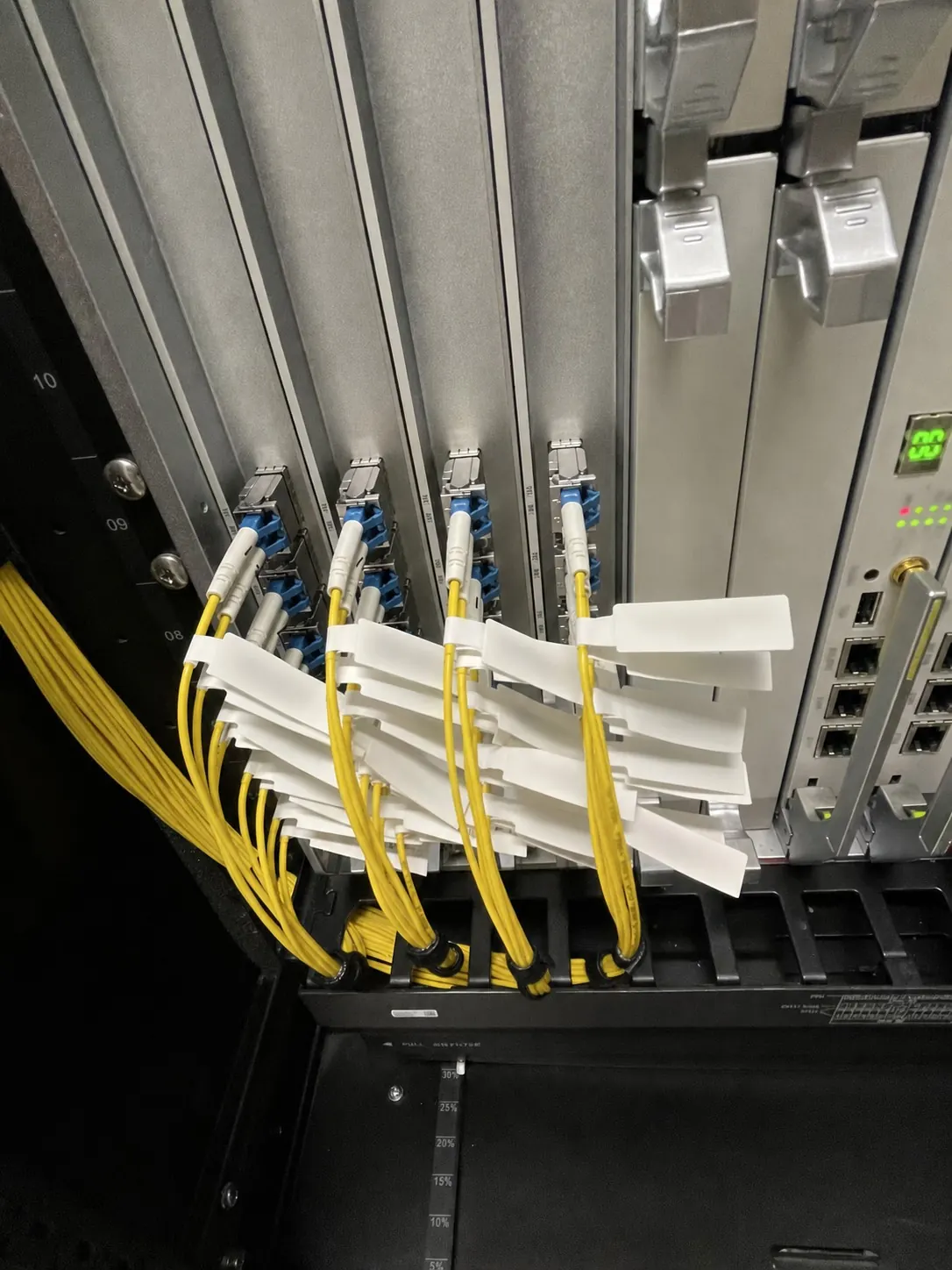

Single-mode fibre routes were formed into protected, maintainable bundles with reusable hook-and-loop management. Source, destination, transmit, receive and port information were reconciled at both ends.
Test and hand over the installed paths
Connectivity and optical-level checks were completed against the connection schedule, with exceptions resolved before the rack, ODF and port records were issued for operational use.
Outcomes
- MMR optical transport and cross-connect infrastructure brought into service
- Port-level traceability established between equipment, ODFs and remote racks
- High-density fibre routes managed around protection and maintenance requirements
- Connection schedules and test records reconciled to the installed state
Client Outcome
The data centre gained a structured optical interconnection node that can be operated and expanded without losing control of individual paths. The physical labels shown in the project records have been anonymised for publication while the delivered handover retained the full operational detail.
